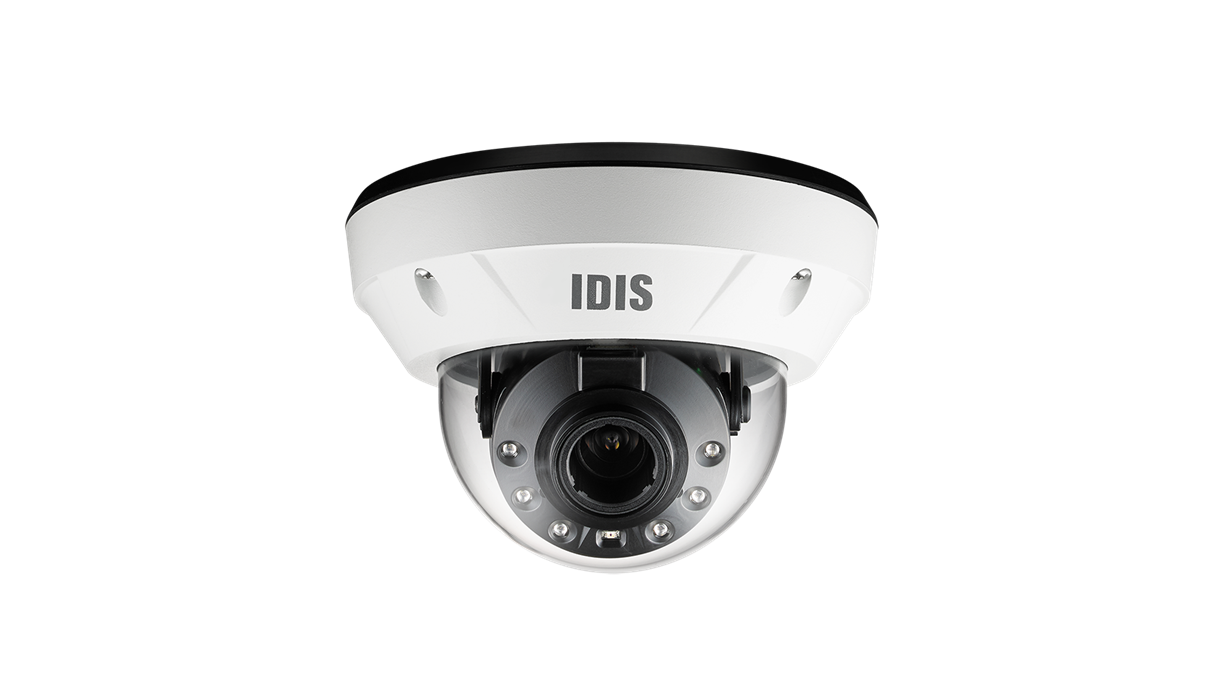

DC-D4831HRX-A
8MP Vandal-Resistant IR Dome Camera/ NDAA Compliant
- 8MP (3840x2160) resolution
- Motorized Vari-focal lens (f=2.7 - 13.5mm)
- micro SD/SDHC/SDXC
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- PoE (IEEE 802.3af Class 3), 12V DC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (Distance : 40m / 131.2ft )
- 3-axis mechanical design for installation
- Supports ONVIF
- Easy installation with DirectIP NVR
- NDAA Compliance
📞Tư vấn mua hàng:
0908 070 691
8MP Vandal-Resistant IR Dome Camera/ NDAA Compliant
- 8MP (3840x2160) resolution
- Motorized Vari-focal lens (f=2.7 - 13.5mm)
- micro SD/SDHC/SDXC
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- PoE (IEEE 802.3af Class 3), 12V DC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (Distance : 40m / 131.2ft )
- 3-axis mechanical design for installation
- Supports ONVIF
- Easy installation with DirectIP NVR
- NDAA Compliance
| Video | |
| Image Sensor | 1/2.8 |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=2.7-13.5mm |
| Aperture | F1.8 - 3.32 |
| Iris Control | DC IRIS |
| Angular Field of View | Wide : 110.6°(H) 57.3°(V) 134.1°(D), Tele : 32.6°(H) 18.3°(V) 37.4°(D) |
| Pan/Tilt/Rotate Range | Pan: -175° ~ 175°, Tilt: 0° ~ 64°, Rotate: -177° ~ 177° |
| Min. Illumination | COLOR : 0.2 lux @ F1.8 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 40m / 131.2ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | - |
| Two-way Audio | - |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 3840 x 2160 15ips : 3840 x 2160(WDR) |
| Supports Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Multi-video Streaming | Quaruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Pre-recorderd Voice Alert - IDIS protoco | On / Off |
| Audio In/ Out | - |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 1.2A, 14.4W PoE, IEEE 802.3af(Class 3), 12.4W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø155 x 104.4mm |
| Weight | 1.02 kg(2.25lb) |
