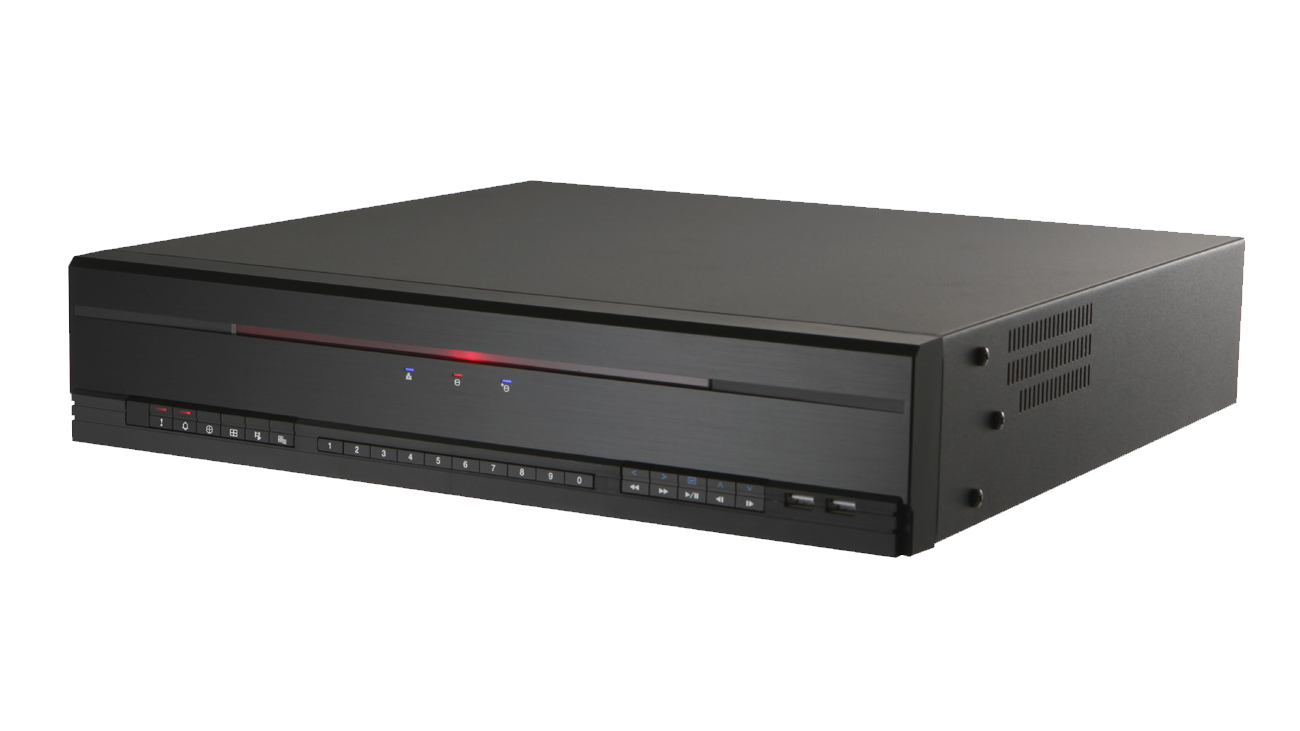

DR-3516P
DirectIP 3500 Series H.265 4K Recorder/NDAA Compliant
- Total incoming throughput 320Mbps
- Up to 480ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 480ips live display
- Easy to install, set-up and play with DirectIP™ cameras
- Built-in 16 channel PoE Switch
- Expandable up to 56TB using eSATA storage
- Supports one click network configuration through FEN service
- Supports third party cameras (Axis, Panasonic, ONVIF™ )
📞Tư vấn mua hàng:
0908 070 691
DirectIP 3500 Series H.265 4K Recorder/NDAA Compliant
- Total incoming throughput 320Mbps
- Up to 480ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 480ips live display
- Easy to install, set-up and play with DirectIP™ cameras
- Built-in 16 channel PoE Switch
- Expandable up to 56TB using eSATA storage
- Supports one click network configuration through FEN service
- Supports third party cameras (Axis, Panasonic, ONVIF™ )
| VIDEO | |
| Video Inputs | 16 IP channels |
| Max. Incoming Throughput | 320Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| RECORDING | |
| Max. Throughput | 180Mbps, 480ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Alarm in, Audio detection, Motion detection, Trip-zone, Tampering, Video Loss, Text-in, Etc. |
| PLAYBACK | |
| Performance | 16ch synchronous playback |
| Search Mode | Time-lapse, Event log, Text-in |
| Digital Zoom | x2 ~ x12 |
| STORAGE | |
| HDD | SATA x4, eSATA x2 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here. |
| NETWORK | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x16 Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| Camera Power | PoE(IEEE 802.3at class 4) supported 16 ports, 120W |
| Remote Data Export | IDIS Player, AVI, JPG |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite |
| INTERFACE | |
| Audio In/ Out | Local (NVR) : 1 RCA / 1RCA 1HDMI IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | 1 |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 430mm x 88mm x 413.8mm (16.9" x 3.5" x 16.29") |
| Unit Weight | 6.0kg (13.2lb) (with 1 HDD) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | AC 100-240 V, 50/60Hz, 3.0 - 1.5A |
| Power Consumption | 100-240V~, 50/60Hz, 3.0-1.5A, 200W |
| Approvals | FCC, CE, KC, CB, UL, PSE |
